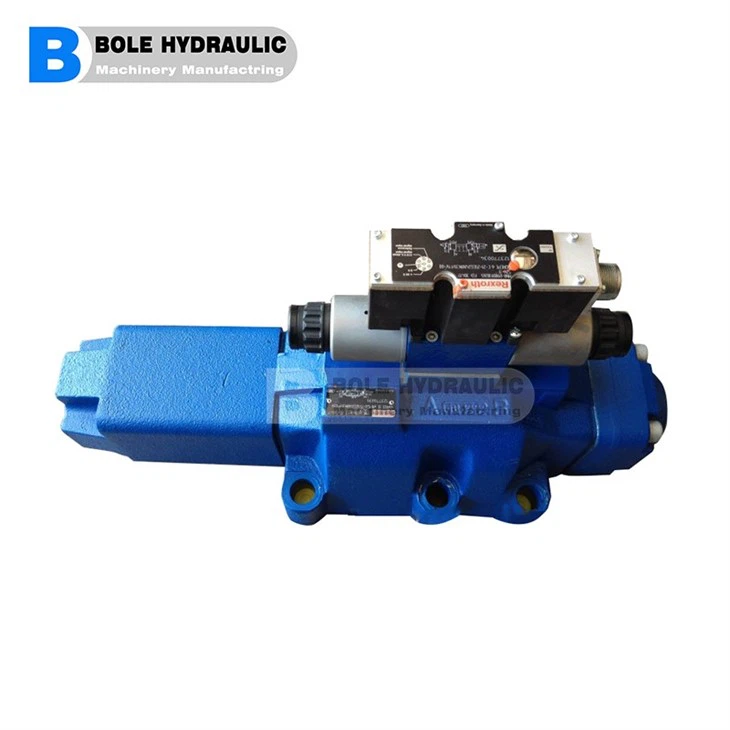

Pressione Riduzione Rexroth Idraulico Valvola R900452815 ZDR6DP2-43/75YMV ZDR6DP2-4X/75YMV
R900300008ZDR6DP0-4X/30YMW80R900567289ZDR6DP0-4X/40YMJMRW80R900588549ZDR6DP0-4X/40YMJVW80R900323430ZDR6DP0-4X/40YMJVW81R900380444ZDR6DP0-4X/40YMJVW82R900567288ZDR6DP0-4X/40YMJVRW80R900582474ZDR6DP0-4X/40YMMRW80R900565885ZDR6DP0-4X/40YMMTW80R900588331ZDR6DP0-4X/40YMVRW80R900588559ZDR6DP0-4X/40YMVRW80R900449002ZDR6DP0-4X/75YMW80R900576600ZDR6DP0-4X=40YMW80R900559490ZDR6DP0-4X=40YMW80=KMR900917127ZDR6DP0-4X=40YMW80=LBR900559452ZDR6DP0-4X=40YMW80=LBR900576931ZDR6DP0-4X=40YMW80=PLR900576601ZDR6DP0-4X=40YMRW80R901178299ZDR6DP1-4X/150-100YMR901093515ZDR6DP1-4X/150-95YMR900410806ZDR6DP1-4X/150YMR900424336ZDR6DP1-4X/150YM/12R900450066ZDR6DP1-4X/150YMVR900435505ZDR6DP1-4X/150YMV/12R901243250ZDR6DP1-4X/150YMXCR901041037ZDR6DP1-4X/150YMXCVR901430537ZDR6DP1-4X/210-110YMR900476381ZDR6DP1-4X/210YMR900430191ZDR6DP1-4X/210YM/12R901029884ZDR6DP1-4X/210YMJ3R900426183ZDR6DP1-4X/210YMVR901038297ZDR6DP1-4X/210YMXCVR900409965ZDR6DP1-4X/25YMR900585542ZDR6DP1-4X/25YMW13R900401215ZDR6DP1-4X/25YM/12R900967539ZDR6DP1-4X/25YMVR901201480ZDR6DP1-4X/25YMXCVR900973932ZDR6DP1-4X/50YMR900952684ZDR6DP1-4X/75-30YMR901168922ZDR6DP1-4X/75-40YMR901168927ZDR6DP1-4X/75-50YMR900952683ZDR6DP1-4X/75-55YMR901091911ZDR6DP1-4X/75-60YMR900409967ZDR6DP1-4X/75YMR900430189ZDR6DP1-4X/75YM/12R901357827ZDR6DP1-4X/75YM/63R900468696ZDR6DP1-4X/75YMJ3R900506336ZDR6DP1-4X/75YMVR900437310ZDR6DP1-4X/75YMV/12R901316127ZDR6DP1-4X/75YMXCR901029750ZDR6DP1-4X/75YMXCVR900546676ZDR6DP2-4X/140YMR900911010ZDR6DP2-4X/150-100YMR901358792ZDR6DP2-4X/150-110YMR900579739ZDR6DP2-4X/150-120YMR901393920ZDR6DP2-4X/150-120YM=NER900743469ZDR6DP2-4X/150-120YMJ3R901264573ZDR6DP2-4X/150-135YMR900559464ZDR6DP2-4X/150-140YMR901033692ZDR6DP2-4X/150-45YMR901335263ZDR6DP2-4X/150-50YMR901339573ZDR6DP2-4X/150-60YMR901214742ZDR6DP2-4X/150-65YMR901160122ZDR6DP2-4X/150-70YMR901315999ZDR6DP2-4X/150-70YMVR901025657ZDR6DP2-4X/150-75YMR900743898ZDR6DP2-4X/150-80YMR900743468ZDR6DP2-4X/150-80YMJ3R900776671ZDR6DP2-4X/150-90YMR901357530ZDR6DP2-4X/150P100YMR901534322ZDR6DP2-4X/150P100YMVR901302423ZDR6DP2-4X/150P140YMR90005115ZDR6DP2-4X/150YMR900483787ZDR6DP2-4X/150YMR900410852ZDR6DP2-4X/150YMR900404754ZDR6DP2-4X/150YM/12R900559000ZDR6DP2-4X/150YM=LBR900433541ZDR6DP2-4X/150YMJ3R900521451ZDR6DP2-4X/150YMJ3VR900476331ZDR6DP2-4X/150YMVR900439322ZDR6DP2-4X/150YMV/12R901112667ZDR6DP2-4X/150YMV/60R901301793ZDR6DP2-4X/150YMV/63R901144763ZDR6DP2-4X/160YMV/60R901229374ZDR6DP2-4X/210-130YMR901115858ZDR6DP2-4X/210-140YMR901095117ZDR6DP2-4X/210-150YMR901288559ZDR6DP2-4X/210-155YMR901117197ZDR6DP2-4X/210-160YMVR901408878ZDR6DP2-4X/210-170YMR901076942ZDR6DP2-4X/210-180YMR901316001ZDR6DP2-4X/210-180YMVR976715811ZDR6DP2-4X/210-210YMR901060982ZDR6DP2-4X/210P160YMVR901402446ZDR6DP2-4X/210P180YMVR900917447ZDR6DP2-4X/210P190YMVR901334322ZDR6DP2-4X/210P200YMVR900410857ZDR6DP2-4X/210YMR900483788ZDR6DP2-4X/210YMR900433350ZDR6DP2-4X/210YM/12R901239029ZDR6DP2-4X/210YM/60R901123814ZDR6DP2-4X/210YM/62R900455885ZDR6DP2-4X/210YMJR900455874ZDR6DP2-4X/210YMJ3R900521453ZDR6DP2-4X/210YMJ3VR900400663ZDR6DP2-4X/210YMVR900500035ZDR6DP2-4X/210YMV/12R901174616ZDR6DP2-4X/25-10YMR900574332ZDR6DP2-4X/25-15YMR900559691ZDR6DP2-4X/25-16YMR900559689ZDR6DP2-4X/25-18YMR900963413ZDR6DP2-4X/25-20YMR901315995ZDR6DP2-4X/25-20YMVR900559698ZDR6DP2-4X/25-3YMR901242884ZDR6DP2-4X/25-5YMR901139010ZDR6DP2-4X/250YMV/60R901208227ZDR6DP2-4X/25P10YMR900483785ZDR6DP2-4X/25YMR900410810ZDR6DP2-4X/25YMR900404346ZDR6DP2-4X/25YM/12R900911318ZDR6DP2-4X/25YM/50R901468220ZDR6DP2-4X/25YM/62R900402318ZDR6DP2-4X/25YMJ3R900448143ZDR6DP2-4X/25YMVR900440940ZDR6DP2-4X/25YMV/12R901242216ZDR6DP2-4X/25YMV/60R901137851ZDR6DP2-4X/30YMV/60R901203369ZDR6DP2-4X/75-25YMR901043975ZDR6DP2-4X/75-30YMR900559693ZDR6DP2-4X/75-32YMR901157838ZDR6DP2-4X/75-35YMR900934570ZDR6DP2-4X/75-40YMR901180298ZDR6DP2-4X/75-45YMR900923429ZDR6DP2-4X/75-50YMR901006522ZDR6DP2-4X/75-60YMR900559700ZDR6DP2-4X/75-65YMR901203367ZDR6DP2-4X/75-70YMR901018325ZDR6DP2-4X/75-75YMR901393055ZDR6DP2-4X/75P30YMR901302419ZDR6DP2-4X/75P40YMR901363025ZDR6DP2-4X/75P45YMR901268382ZDR6DP2-4X/75P50YMR901329422ZDR6DP2-4X/75P55YMR900576474ZDR6DP2-4X/75P60YMR901357533ZDR6DP2-4X/75P70YMR901302421ZDR6DP2-4X/75P75YMR900410817ZDR6DP2-4X/75YMR900483786ZDR6DP2-4X/75YMR900446919ZDR6DP2-4X/75YMW102R900401216ZDR6DP2-4X/75YM/12R900961383ZDR6DP2-4X/75YM/12R900911326ZDR6DP2-4X/75YM/50R901128898ZDR6DP2-4X/75YM/60R900727968ZDR6DP2-4X/75YM/60R901112989ZDR6DP2-4X/75YM/62R900559001ZDR6DP2-4X/75YM=LBR900406666ZDR6DP2-4X/75YMJ3R900521450ZDR6DP2-4X/75YMJ3VR900560061ZDR6DP2-4X/75YMJV/12R900582590ZDR6DP2-4X/75YMMRR900452815ZDR6DP2-4X/75YMVR900456019ZDR6DP2-4X/75YMV/12R900747678ZDR6DP2-4X/75YMV/60R901233779ZDR6DP2-4X/75YMV/63R901137852ZDR6DP2-4X/80YMV/60R901170211ZDR6DP2-4X/80YMV/62R900576454ZDR6DP2-4X=150YMR900559336ZDR6DP2-4X=150YM=PLR900576593ZDR6DP2-4X=210YMR900576400ZDR6DP2-4X=25YM=PLR900576592ZDR6DP2-4X=75YMR900559284ZDR6DP2-4X=75YM=PLR900473199ZDR6DP3-4X/150YMR900927839ZDR6DP3-4X/150YM/12R901186172ZDR6DP3-4X/150YM/62R900582961ZDR6DP3-4X/150YMVR901144917ZDR6DP3-4X/160YMV/60R900481115ZDR6DP3-4X/210YMR900964381ZDR6DP3-4X/210YM/12R900555927ZDR6DP3-4X/210YMVR900476274ZDR6DP3-4X/25YMR900460553ZDR6DP3-4X/25YM/12R900453668ZDR6DP3-4X/25YMVR900462379ZDR6DP3-4X/25YMV/12R901137832ZDR6DP3-4X/30YMV/60R900410865ZDR6DP3-4X/75YMR900457096ZDR6DP3-4X/75YM/12R901110647ZDR6DP3-4X/75YM/62R900496836ZDR6DP3-4X/75YMVR900439312ZDR6DP3-4X/75YMV/12R901137846ZDR6DP3-4X/80YMV/60R900401519ZDR6DP7-4X/150YMR900481065ZDR6DP7-4X/150YMR900712127ZDR6DP7-4X/150YM/12R900435960ZDR6DP7-4X/210YMR900712434ZDR6DP7-4X/210YM/12R901438598ZDR6DP7-4X/210YMVR900551368ZDR6DP7-4X/25YMR900557714ZDR6DP7-4X/25YM/12R900583635ZDR6DP7-4X/25YMVR901137866ZDR6DP7-4X/30YMV/60R900410874ZDR6DP7-4X/75YMR900900147ZDR6DP7-4X/75YMVR901137868ZDR6DP7-4X/80YMV/60R901534937ZDR6DPA1-4X/100YMR901343438ZDR6DPA1-4X/80YMR901144769ZDR6DPA2-4X/160YMV/60R901230539ZDR6DPA2-4X/210YMV/60R901144771ZDR6DPA2-4X/250YMV/60R901234753ZDR6DPA2-4X/25YMV/60R901144768ZDR6DPA2-4X/30YMV/60R901366524ZDR6DPA2-4X/80YMR901144907ZDR6DPA2-4X/80YMV/60R901144922ZDR6DPA3-4X/160YMV/60R901144765ZDR6DPA3-4X/30YMV/60R901324828ZDR6DPA3-4X/80YMR901144766ZDR6DPA3-4X/80YMV/60R901144912ZDR6DPA7-4X/30YMV/60R901144913ZDR6DPA7-4X/80YMV/60R988004615ZDR6DP0-4X/75YMW80R978909631ZDR6DP1-4X/210YMV/12R978002877ZDR6DP1-4X/25YMVR978855826ZDR6DP1-4X/25YMV/12R978007533ZDR6DP2-4X/210YM-200R978857961ZDR6DP2-4X/75YM/5R978009828ZDR6DP7-4X/150-90YMV/12R978899957ZDR6DP7-4X/150YMV/12R978860797ZDR6DP7-4X/75YM/12R978865794ZDR6DP7-4X/75YMV/12R978008323ZDR6DP7-4X210YMV/12
Rexroth Riduttore di_pressione, diretto azionato ZDR6D Serie
Dimensione 6
Componente serie 4X
Massima esercizio pressione 350 bar
Massimo flusso 50 l/min
Tratti somatici
Sandwich piastra valvola
Portamento modello secondo ISO 4401-03-02-0-05
4 pressione valori nominali
4 Regolazione Tipi:
• Manopola rotante
• Manicotto con esagono e cappuccio protettivo...
• Manopola rotante con scala
• manopola rotante con scala
Pressione riduzione in canale A, B o canale P
Ritegno valvola, opzionale (solo versione "A" )
Corrosion-protected design
Tipo Codice
|
01 |
02 |
03 |
04 |
05 |
06 |
|
07 |
|
08 |
09 |
10 |
11 |
12 |
13 |
14 |
|
Z |
DR |
6 |
D |
|
|
– |
4X |
/ |
|
Y |
|
|
|
|
* |
|
01 |
Sandwich piastra valvola |
Z |
|
02 |
Pressione riduttore valvola |
DR |
|
03 |
Dimensione 6 |
6 |
|
04 |
Diretto azionato |
D |
|
05 |
Pressione riduzione in canale A➁ |
A |
|
B |
||
|
Pressione riduzione in canale P➁ |
P |
|
|
Regolazione tipo |
||
|
06 |
Rotante manopola |
1 |
|
Manicotto con esagono e cappuccio protettivo" ("J3" versione senza cappuccio protettivo) |
2 |
|
|
Bloccabile rotante manopola con scala |
31) |
|
|
Rotante manopola con scala |
7 |
|
|
07 |
Componente serie 40 … 49 (40 … 49: invariato installazione e montaggio dimensioni) |
4X |
|
08 |
Secondaria pressione su a 25 bar |
25 |
|
Secondaria pressione su a 75 bar |
75 |
|
|
Secondaria pressione su a 150 bar |
150 |
|
|
Secondario pressione 210 bar |
210 |
|
|
Secondaria pressione su a 315 bar (solo versione "B", "P", e "2") |
315 |
|
|
09 |
Y |
|
|
10 |
Con ritegno valvola |
no codice |
|
Senza ritegno valvola |
M |
|
|
Corrosione resistenza |
||
|
11 |
Nessuno |
|
|
Migliorato protezione corrosione (240 h sale spray test secondo EN ISO 9227) |
J3 |
|
|
Guarnizione materiale |
||
|
12 |
NBR guarnizioni |
no codice |
|
Guarnizioni FKM |
V |
|
|
Osservare compatibilità di guarnizioni con fluidoi_idraulico usato. |
||
|
13 |
Ulteriori dettagli nel testo chiaro |
* |
